ERW Tube Mill Line (O.D. Max. 127.0mm ~ 190.7mm)



  • Coil Car with Coil Opener and Peeler
    Uncoiler (Single Drum and Center Adjusting)

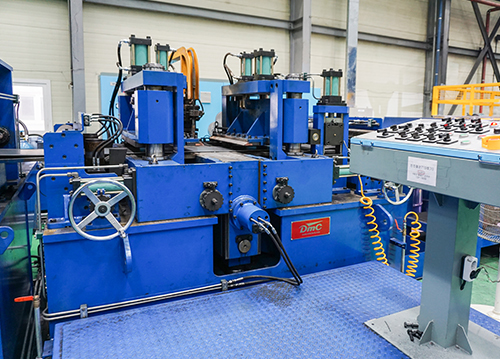

  • Shear and End Welder Machine

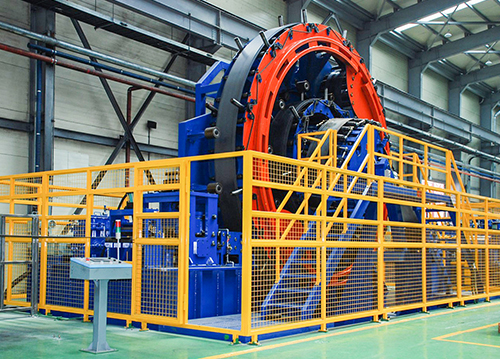

  • Rotary Accumulator (Vertical Type)

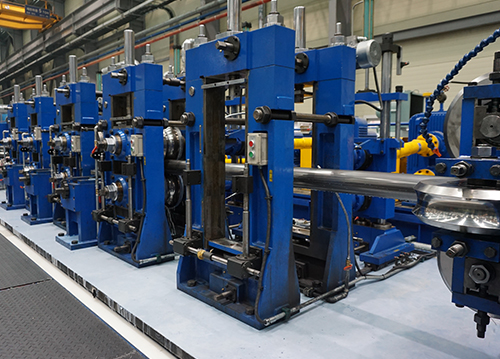

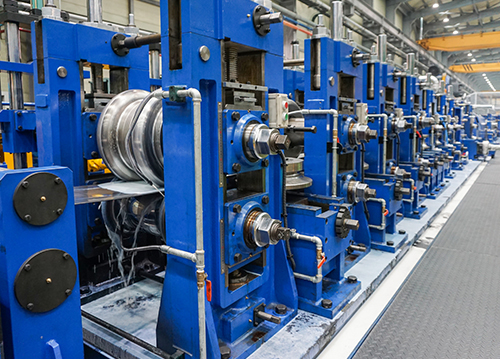

  • Forming Roll Stands
    Quick Change System (Quick Coupler Type)

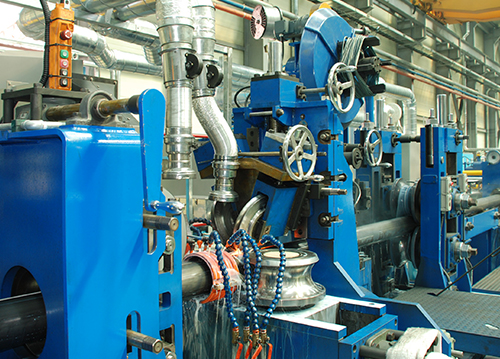

  • High Frequency Welding

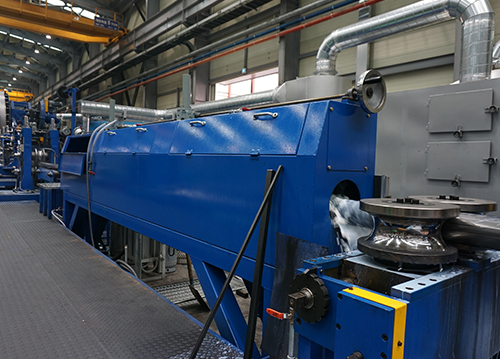

  • Cooling Bath

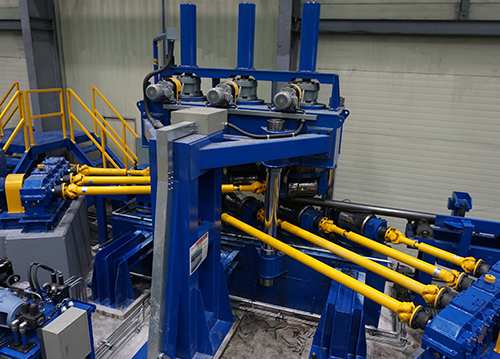

  • Sizing Roll Stands
    Quick Change System (Quick Coupler Type)

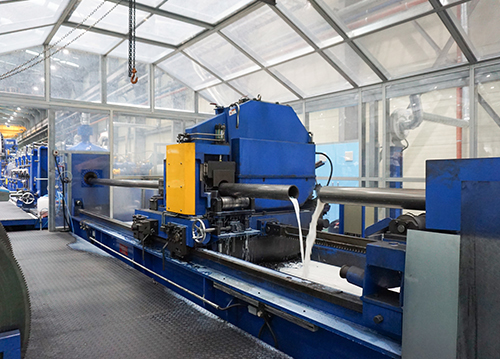

  • Friction Saw Cut-off Machine
  • Straightening Machine

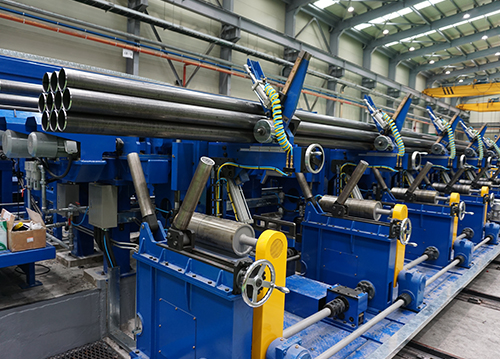

  • End Facing and Chamfering Machine
  • Air Blowing System

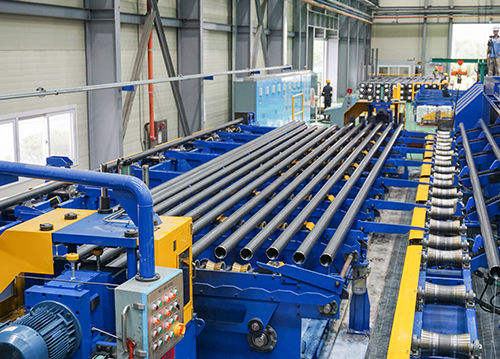

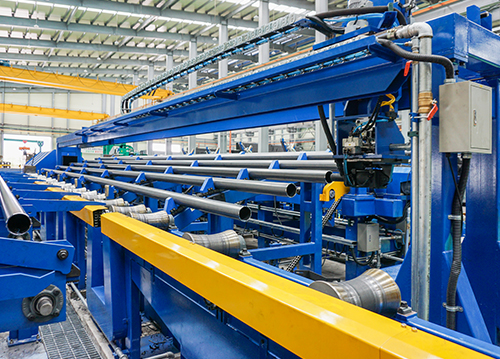

  • Automatic Packing System (Fork Type)

Standard Technical Specification

Specification
Models Nominal Size Tube Outer Diameter Wall Thickness
Round Square
inch mm mm mm
DMC-TM31A
DMC-TM31B
DMC-TM31C
DMC-TM31D
DMC-TM31E
5
5
5 1/2
5 1/2
5 1/2
38.1 ~ 127.0
38.1 ~ 127.0
42.7 ~ 139.8
42.7 ~ 139.8
42.7 ~ 139.8
30x30 ~ 100x100
30x30 ~ 100x100
35x35 ~ 110x110
35x35 ~ 110x110
35x35 ~ 110x110
1.2 ~ 4.5
1.2 ~ 6.0
1.4 ~ 4.5
1.4 ~ 6.0
1.4 ~ 9.0
DMC-TM32A
DMC-TM32B
DMC-TM32C
6
6
6
50.8 ~ 168.3
50.8 ~ 168.3
50.8 ~ 168.3
40x40 ~ 130x130
40x40 ~ 130x130
40x40 ~ 130x130
1.4 ~ 6.0
2.0 ~ 8.0
2.3 ~ 10.0
DMC-TM33A
DMC-TM33B
DMC-TM33C
7
7
7
60.5 ~ 190.7
60.5 ~ 190.7
60.5 ~ 190.7
50x50 ~ 150x150
50x50 ~ 150x150
50x50 ~ 150x150
1.4 ~ 6.0
2.0 ~ 8.0
2.3 ~ 10.0
